CPC5002
Dual High-Speed Open-Drain
I NTEGRATED C IRCUITS D IVISION
Features
Description
Digital Optical Isolator
?
?
?
?
?
?
?
?
?
Dual Optical Isolator
Buffers Two Independent Signals
Power-Down to Hi-Z Doesn't Load Outputs
Low-Power CMOS Reduces Supply Current
Output operates Over 2.7V < V DD < 5.5V
LED Drive Current Only 1.5mA
High Speed: 10Mbaud Typical
3750V rms Galvanic Isolation
Single 8-Pin DIP or Surface Mount Package
The CPC5002 is a dual high speed optical logic
isolator with open-drain outputs providing 3750V rms of
galvanic isolation between the inputs and the outputs.
Activating the input LED causes the open-drain output
to turn on, pulling the voltage of the external pullup
resistor towards ground. Utilizing CMOS technology
enables the output stage’s high-gain circuitry to
operate with a miserly power consumption of <5mW
(typical) when operated with a 3.3V supply voltage
Applications
and a low input LED drive current of 1.5mA.
?
?
?
?
?
?
?
Test and Measurement
A/D and D/A Isolation
Power Converter Isolation
Medical
Ground Loop Elimination
I 2 C Bus Isolation
Computer Bus Isolation
Because optical isolators pass logic levels directly
there is no internal state refresh clock to maintain a
non-changing input. Additionally, the CPC5002 will
always return the buffered signals to their proper value
after a transient interruption at either side.
? Isolated Line Receiver
Approvals
Ordering Information
? UL Recognized Component: File E76270
? EN/IEC 60950 Certified Component:
TUV Certificate: B 11 10 49410 007
Part
CPC5002G
CPC5002GS
CPC5002GSTR
Description
8-Pin DIP (50 / Tube)
8-Pin Surface Mount (50 / Tube)
8-Pin Surface Mount Tape & Reel (1000 / Reel)
Pb
RoHS
2002/95/EC
e 3

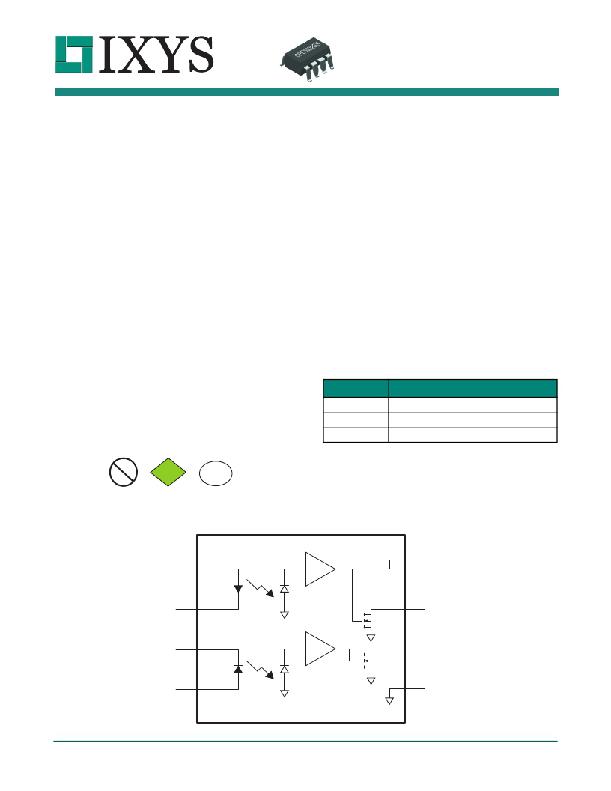

Figure 1. CPC5002 Functional Block Diagram
A1
1
8
V DD
LED
K1
K2
2
3
7
6
OUT1
OUT2
LED
DS-CPC5002-R03
A2
4
www.ixysic.com
5
GND
1
